Heavy-Duty Outdoor & Telecom Cabling Solutions
Built for Harsh Environments. Engineered for Uninterrupted Connectivity.
Supporting Metropolitan Backbones, Industrial Parks, and Aerial Power Grid Telecommunications globally.
Key Product Selection

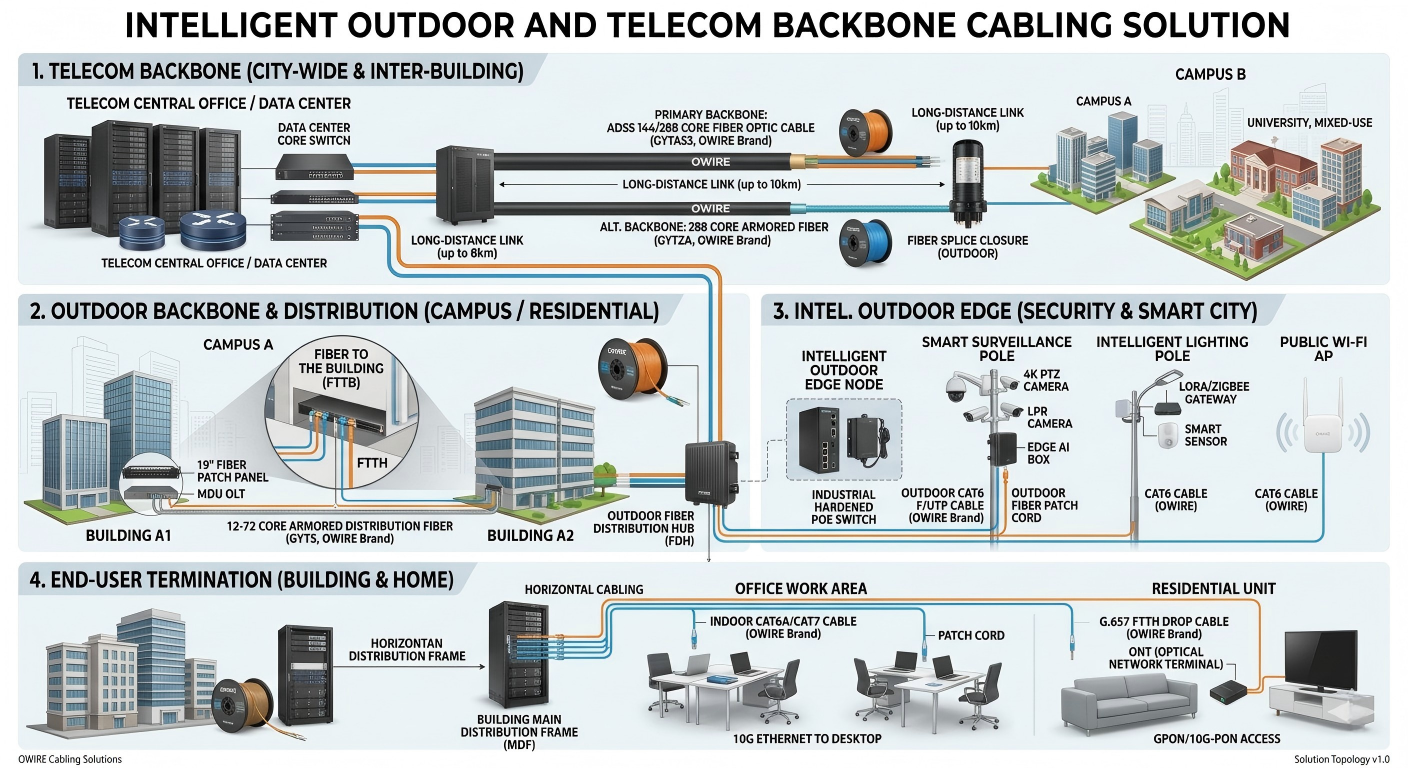

Tailored Solutions for Critical Telecom Infrastructure
High-capacity data transmission across long distances requires maximum physical protection and low attenuation. Our layered armored cables ensure continuous operation in underground ducts.
Recommended Products: GYTS / GYTA / GYTY53 Layer-Stranded Armored Fiber Optic Cables (Up to 144+ Cores).
Co-running telecom lines with high-voltage power grids introduces extreme electrical interference. Our self-supporting solutions eliminate risks without powering down the grid.
Recommended Products: ADSS (All-Dielectric Self-Supporting) Non-Metallic Fiber Optic Cables.
Delivering reliable gigabit data and power to outdoor IP cameras, base stations, and peripheral sensors under heavy UV and climate exposure.
Recommended Products: Cat.6 SF/UTP Outdoor Network Cables (Double Jacket: Flexible PVC + Heavy-Molecular Waterproof Anti-UV PE Shell).
Technical Parameters & International Compliance Standards
All OWIRE products engineered for outdoor & telecom solutions strictly comply with international telecommunication benchmarks. Download full data sheets or view core mechanical and electrical specifications below.
| Technical Indicator | Standard Specification | Engineering Advantage |
|---|---|---|
| Tensile Strength | Long-term: 600N Short-term: 1500N | Resists extreme pulling force during underground duct pulling and long-span aerial deployment. |
| Crush Resistance | Long-term: 300N/100mm Short-term: 1000N/100mm | Heavy-duty steel/aluminum armor prevents rodent bites and external mechanical crushing. |
| Moisture Barrier | Double-Jelly Filled (Fiber Jelly + Cable Jelly) | Provides 100% longitudinal water-blocking to prevent water ingress in flooded conduits. |
| Temperature Range | Operation & Storage: -40°C to +70°C | Ensures zero attenuation fluctuation under extreme arctic frost or desert heat. |
| Technical Indicator | Standard Specification | Engineering Advantage |
|---|---|---|
| Structure Type | All-Dielectric Self-Supporting (ADSS) | 100% non-metallic FRP strength member, zero electromagnetic interference in high-voltage zones. |
| Load Material | High-Modulus Aramid Yarn (DuPont Kevlar) |
Optimized for long spans (100m-300m+) without sag, minimizing cable fatigue. |
| Applicable Voltage | Co-running on ≤ 220kV Power Lines | Safely installed on existing power grid towers without requiring a power shutdown. |
| Compliance | IEEE 1222 & IEC 60794 | Meets global standards for power utility telecom infrastructure. |
| Technical Indicator | Standard Specification | Engineering Advantage |
|---|---|---|
| Conductor Material | 100% Oxygen-Free Bare Copper (23 AWG) | Conductor DC Resistance ≤ 73.2 Ω/km. Perfect for long-distance Gigabit PoE++ transmission. |
| Shielding Structure | SF/UTP (Aluminum Foil + Copper Braid) | Blocks 99.9% of external RF and electromagnetic interference from nearby power lines. |
| Double-Jacket Shell | Inner Flexible PVC + Outer High-Molecular PE | Finished Outer Diameter (OD) reaches 8.60mm. Heavy-duty defense against UV and abrasion. |
| Reference Standard | ANSI/TIA-568-C.2 & IEC 61156 | Guaranteed network bandwidth headroom for outdoor CCTV and wireless base stations. |
